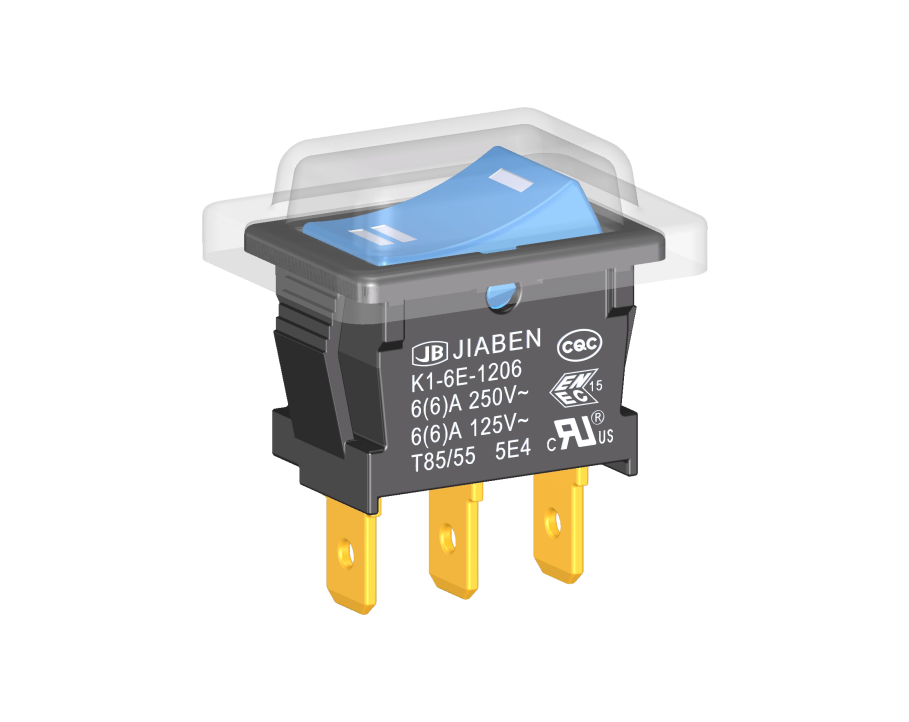

k1-6e(防尘)跷板开关

k1-6e series (dustproof) rocker switches

产品描述product description

◆k1-6e系列是一款标准型的小型跷板开关，也通称船型开关、波形开关等，有普通结构带防护罩防尘防水和内部防尘结构两款可以选择，用途极广，可用于小型电动工具，如：模具电磨、电动钉枪、手砂机、激光器等，也可用于各类家用电器及办公设备，如：台灯、电扇、打印机、游戏机、电脑电源、有源音箱等等。
◆k1-6e series are one standard type rocker switch, optional with protection cap for dustproof and waterproof, or with inner dustproof structure, commonly for use in portable power-tools such as hand sanders, die grinders, electric nailers, laser actuators, etc. also for used in small home appliances and office equipments, such as reading lamps, electric fans, printers, game players, computer power-supplys, power sound box, etc.

产品特征features

◆可选带以下功能 optional with the function as follows:
→单极单掷 spst (single pole single throw)
→单极双掷 spdt (single pole double throw)
→单极双掷带中间断开 spdt with centre-off
→点动功能 momentary act
◆可选带以下附件 optional with the accessories as follows:

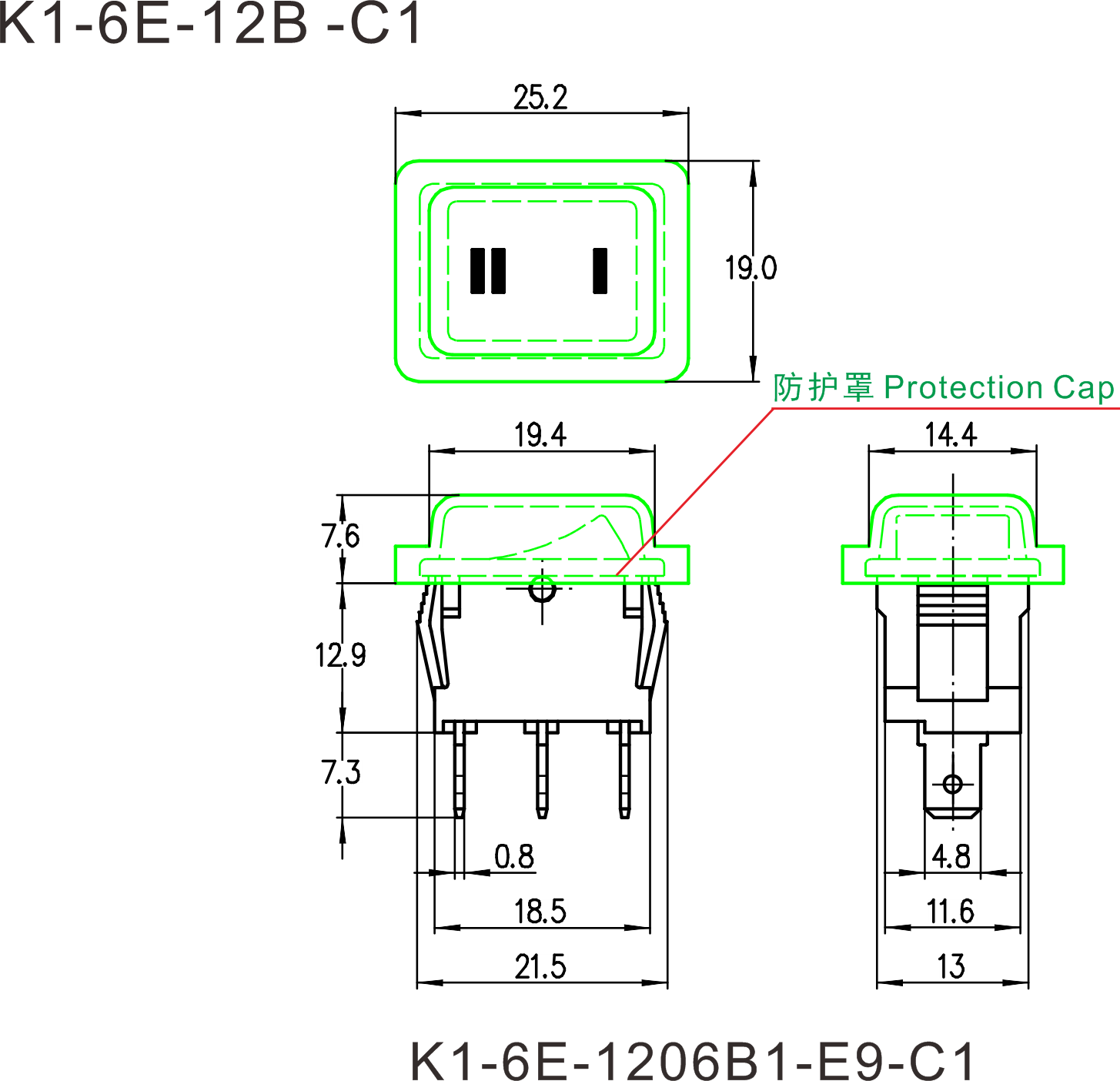

→防护罩 protection cap
→内部防尘结构 inner dustproof structure
→焊接带端子导线 soldering with leads and terminals

技术数据technical data

→机械耐久寿命 mechanical life endurance≥5e4/ 1e5
→电气耐久寿命 electrical life endurance≥1e4/ 5e4
→最大冲击电流 max. inrush current at 250v48a
→最大冲击电流 max. inrush current at 125v48a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~85°c
→操动件温度 actuator temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具suitable for appliances of protection class ii

端子类型terminals

◆输入端/输出端 input side/output side:
→插片端子 plug-in terminals 4.8×0.8mm
→焊接端子 solder terminals
→线路板焊接端子 pcb solder terminals
★本产品荣获实用新型专利，专利号：zl202022095504.x
★utility model patented with the no. is zl202022095504.x
