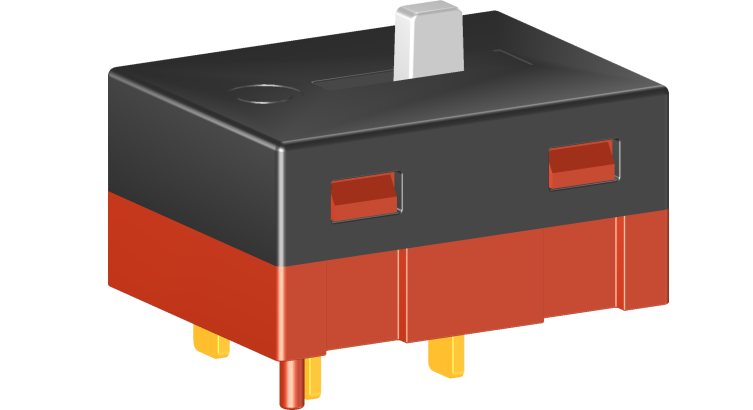

fdpx滑动(推拉)开关

fdpx series slide (push-pull) switches

产品描述product description

fdpx系列是一款通用型的滑动开关,也叫推拉开关或推拨开关,内部为瞬间动作结构,应用于各类手持电动工具,如:100和125角磨机、多功能工具等。
fdpx series are general type slide switches, with snap-action structure, commonly for used in power-tools such as 100mm and 125mm angle grinders, multi-function tools, etc.

产品特征features

◆可选带以下功能 optional with the following function:
→单极单掷 spst (single pole single throw)
→单极双掷 spdt (single pole double throw)

技术数据technical data

→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v72a
→最大冲击电流 max. inrush current at 127v108a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 diele ctric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

端子类型terminals

◆输入端/输出端 input side/output side:
→焊接端子 soldering terminals 3.0×0.8mm
→线路板焊接端子 pcb soldering terminals 2.6×0.8mm
→线路板焊接端子 pcb soldering terminals 1.0×0.8mm
★本产品荣获实用新型专利,专利号:zl202021714438.3
★utility model patented with the no. is zl202021714438.3

电气参数和认证 electric rating and certification

订货信息ordering information
