fa7-6h按钮开关

fa7-6h series push-button switches

产品描述product description

◆fa7-6h系列是一款专用型的按钮开关，应用于各类家用电器和园林工具，如：真空吸尘器、充电灯、挂烫机、打草机等。
◆fa7-6h series are special type push-button switch, commonly for used in home appliances or gardening tools such as vacuum cleaners, chargeable lights, grass trimmers, etc.

产品特征features

◆可选带以下功能 optional with following function:
→单极常开 spno
→双极常开 dpno
→单极常开带自锁 spno with latching
→双极常开带自锁 dpno with latching
→带防护罩→带防护罩可实现防尘防水功能（和器具安装后）
→optional with protection cap for dustproof and waterproof (after installed with the appliances)

技术数据technical data

→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v48a
→最大冲击电流 max. inrush current at 125v48a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~105°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

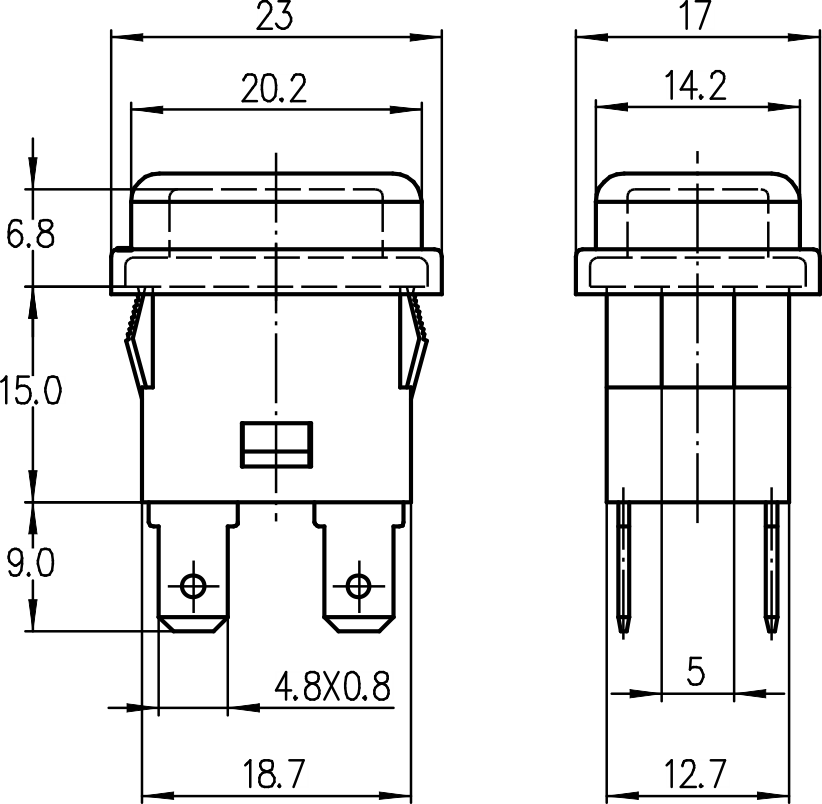

端子类型terminals

◆输入端/输出端 input side/output side:
→插片端子 plug-in terminals 6.3×0.8mm
→插片端子 plug-in terminals 4.8×0.8mm
→焊接端子 soldering terminals 3.0×0.8mm
→线路板焊接端子 pcb soldering terminals 2×0.8mm
→线路板焊接端子 pcb soldering terminals 1.1×0.8mm

电气参数和认证 electric rating and certification

订货信息ordering information
