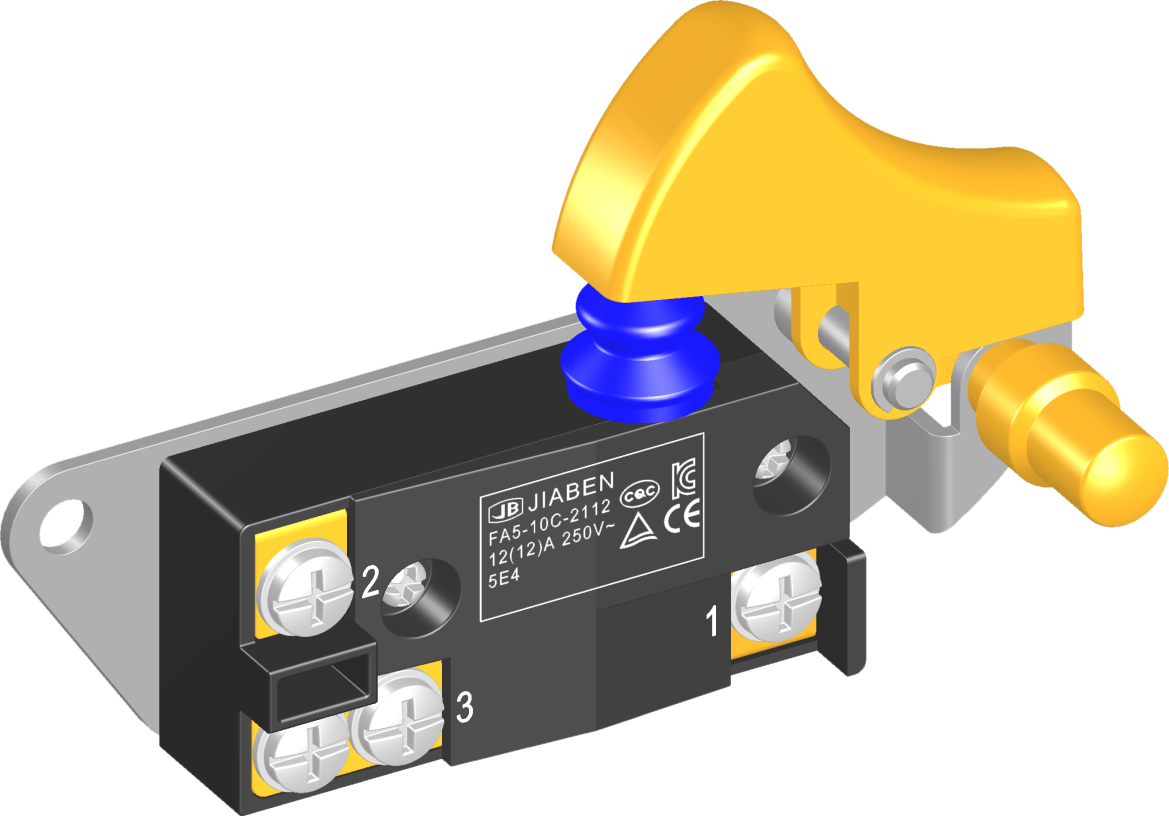

fa5-10c防尘快速动作扳机开关

fa5-10c series dustproof snap-action trigger switches

产品描述product description

fa5-10c 系列是一款专用型的扳机开关,集成防尘功能适合一般功率的台式和手持式电动工具及园林工具,如:型材切割机、斜切锯(介铝机)、125、150和180角向磨光机、抛光机、电圆锯、电锤、电镐、电链锯等。
fa5-10c series are general type trigger switches, integrated dustproof, for used in portable or bench top power-tools such as cut-off machines, miter saws, 125mm, 150mm and 180mm angle grinders, circular saws, polishers, rotary hammers, demolition hammers, electric chain saws, etc.

产品特征features

◆可选带以下锁定类型 optional with following lock types:
→无锁定 no lock

→闭合锁定 lock-on

→断开锁定 lock-off

技术数据technical data

→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v90a
→最大冲击电流 max. inrush current at 127v120a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m  ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

端子类型terminals

◆输入端/输出端 input side/output side:
→螺钉端子 screw terminals m4

电气参数和认证 electric rating and certification

订货信息ordering information
