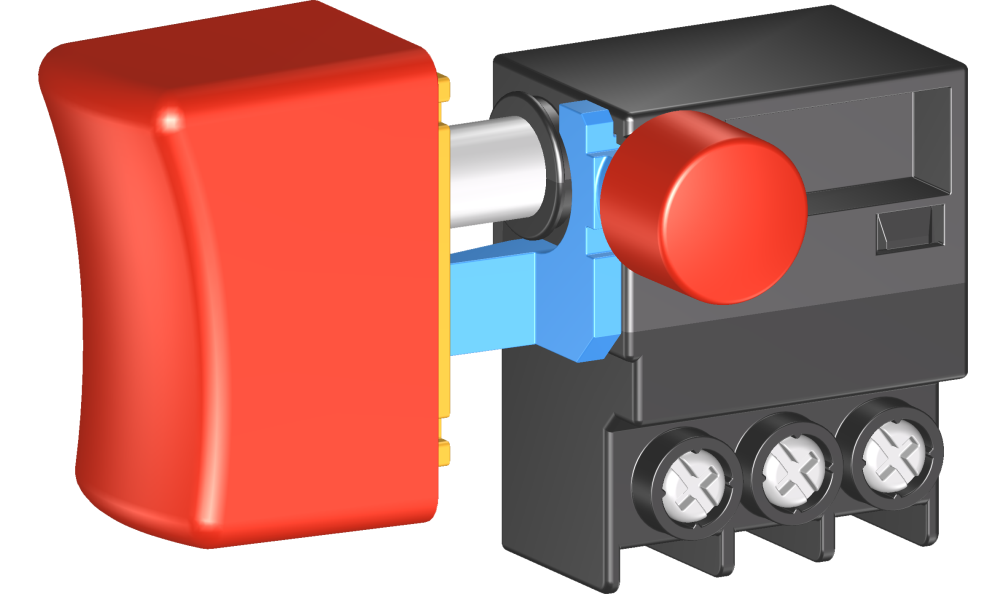

fa2-6cn防尘扳机开关

fa2-6cn series dustproof trigger switches

产品描述product description

◆fa2-6cn系列是一款通用型的扳机开关，为fa2-6c系列的防尘改进款，广泛应用于各类电动工具，如：型材切割机、斜切锯、云石机、电圆锯、电锤、电木铣、砂带机、砂光机、电刨等。
◆fa2-6cn series are one general type trigger switches, which is dustproof improved version of fa2-6c series, commonly for used in power tools such as cut-off machines, miter saws, marble cutters, circular saws, electric hammers, electric routers, belt sanders, electric planers, etc.

产品特征features

◆可选带以下功能 optional with following function:

→单极常开 spno

→单极双掷 spdt

→双极常开 dpno

→双极双掷 dpdt
→一极常开，另一极常闭 one pole no, the other nc
→一极常开，另一极双掷 one pole no, the other dt
◆可选带以下锁定类型 optional with following lock types:
→无锁定 no lock
→闭合锁定 lock-on
→断开锁定 lock-off

技术数据technical data

→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v60a
→最大冲击电流 max. inrush current at 125v96a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m  ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip50
→适用于ii类防护器具 suitable for appliances of protection class ii

端子类型terminals

◆输入端/输出端 input side/output side:
→接线柱端子 pillar terminals φ=3.0mm

电气参数和认证 electric rating and certification

订货信息ordering information
