fa1-6g/fa1-6gp防尘快速动作扳机开关

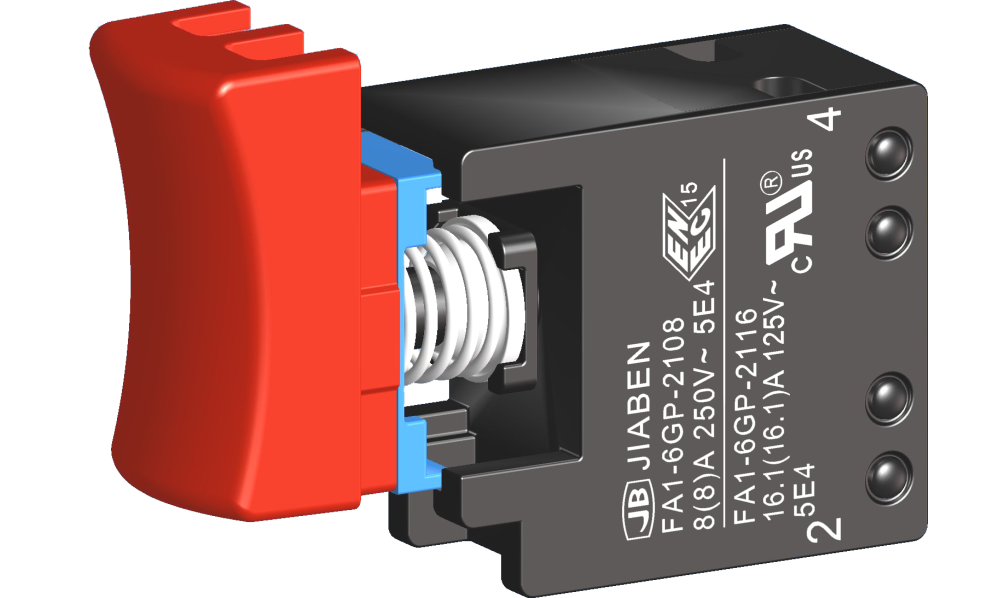

fa1-6g/fa1-6gp series dustproof snap-action trigger switches

产品描述product description

◆fa1-6g/fa1-6gp系列是一款通用型的扳机开关，集成防尘功能，广泛应用于各类电动工具，如：电钻、电锤、往复锯、曲线锯、角向磨光机、搅拌器、型材切割机、斜切锯、大理石切割机、电圆锯、电木铣、砂带机、砂光机、电刨、电动喷枪、电动钉枪，也可应用于电动园林工具，如：电链锯、电动割草机、电动扫雪机等。
◆fa1-6g/fa1-6gp series are general type trigger switches, integrated dustproof, commonly for used in portable power tools such as electric drills, rotary hammers, reciprocating saws, jig saws, angle grinders, electric mixers, cut-off machines, miter saws, marble cutters, electric routers, circular saws， belt sanders, orbit sanders, polishers, electric planers, electric sprayers, electric nailers, etc. besides, also suitable for power gardening tools, such as electric chain saws, electric lawnmowers, electric snowthrowers, etc.

产品特征features

◆可选带以下锁定类型 optional with following lock types:
→无锁定 no lock
→闭合锁定 lock-on
→断开锁定 lock-off
◆开关接通行程达≥4.5，特定带l扳机接通行程可达≥6.2mm
the switch-on travel≥4. 5mm
the switch-on travel ≥6.2mm with employ special “l” triggers

技术数据technical data

→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current at 250v78a
→最大冲击电流 max. inrush currentat 125v96a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

端子类型terminals

◆输入端 input side/输出端 output side:
→插片端子 plug-in terminals 4.8×0.8mm
→接线柱端子 pillar terminals φ=3.0mm
