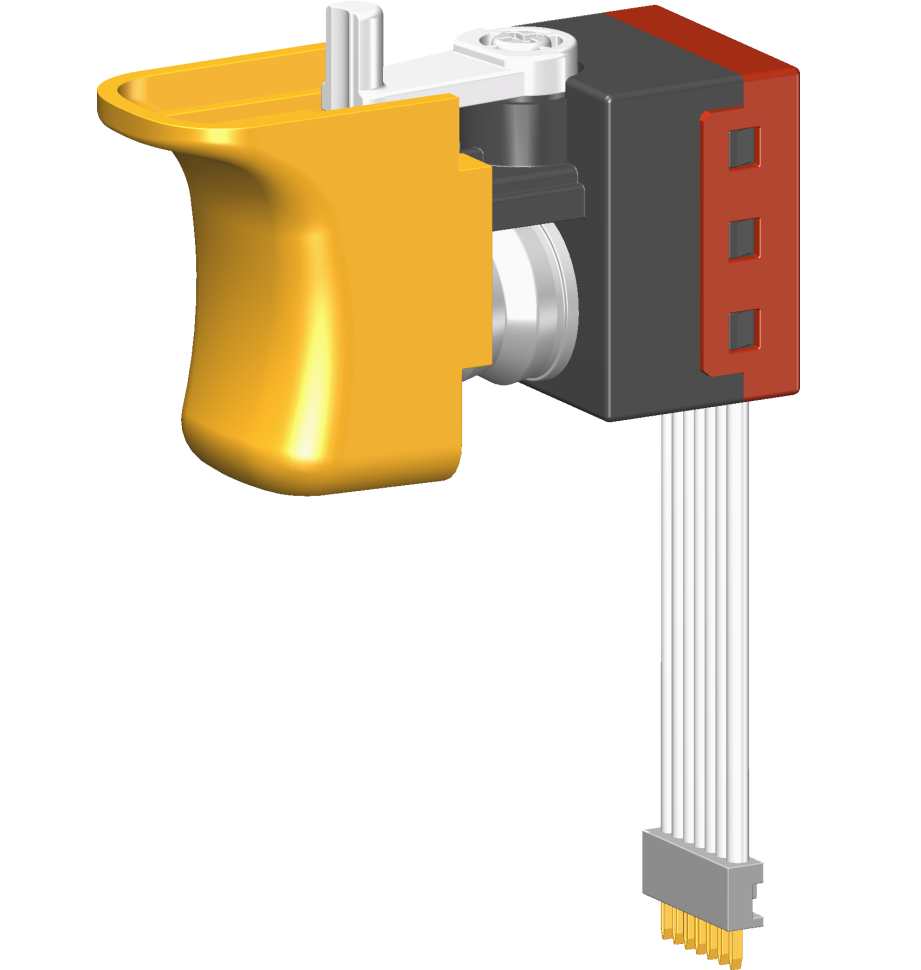

drk防尘直流信号扳机开关

drk series dustproof dc signal trigger switches

产品描述product description

drk系列是一款专用型的直流信号扳机开关,集成防尘(防水)功能,是为直流无刷充电式电动工具和园林工具特别设计的,可适用于:无刷充电式电钻,无刷充电式电锤,无刷充电式螺丝起子,无刷电式冲击扳手,无刷充电式吹吸机等.
drk series are one special type dc signal trigger switches,integrated dustproof (and waterproof), designed specially for used in brushless dc power-tools or gardening tools such as: brushless cordless drills, brushless cordless hammers,brushless cordless screw drivers, brushless cordless impact wrenches, brushless cordless blowers, etc.

产品特征features

◆本开关结构紧凑,可选带以下功能或附件:
→信号通断带电位器输出功能
→信号通断带正反转信号输出和电位器输出功能
→带软胶扳机
◆the switches combine compact size, optional with the function or accessories as follows..
→signal on-off with linear pote ntiometer
→signal on-off with reversing and linear potentiometer
→trigger covered with rubber (overmolding)

技术数据technical data

→机械耐久寿命mechanical life endurance≥1e5
→电气耐久寿命electrical life endurance≥5e4
→最大电流max. current at 130vd.c 0.1a
→接触电阻contact resistance≤30m ohm
→绝缘电阻insulation resistance≥7m ohm
→基本介电强度dielectric strength of function500v
→加强介电强度dielectric strength of reinforced500v
→环境温度ambient tempe rature0°c~55°c
→阻燃等级flammabilityul 94v-0
→防护等级protection type max. ip65/ip67
→开关内部电子部分在相应使用中一并做过相关测试,本开关适合做二类器具开关使用.
→the electronics in the switches are to be tested together with the corresponding appliance, the switches are suitable for appliance of class ii .

端子类型terminals

◆输入端/输出端input side/output side:
→带插头导线wire terminal with plug
→线路板焊接端子pcb solder terminal 1.0x 0.6mm
★本产品荣获多项实用新型专利
★utility models patented

电气参数和认证 electric rating and certification

订货信息ordering information
