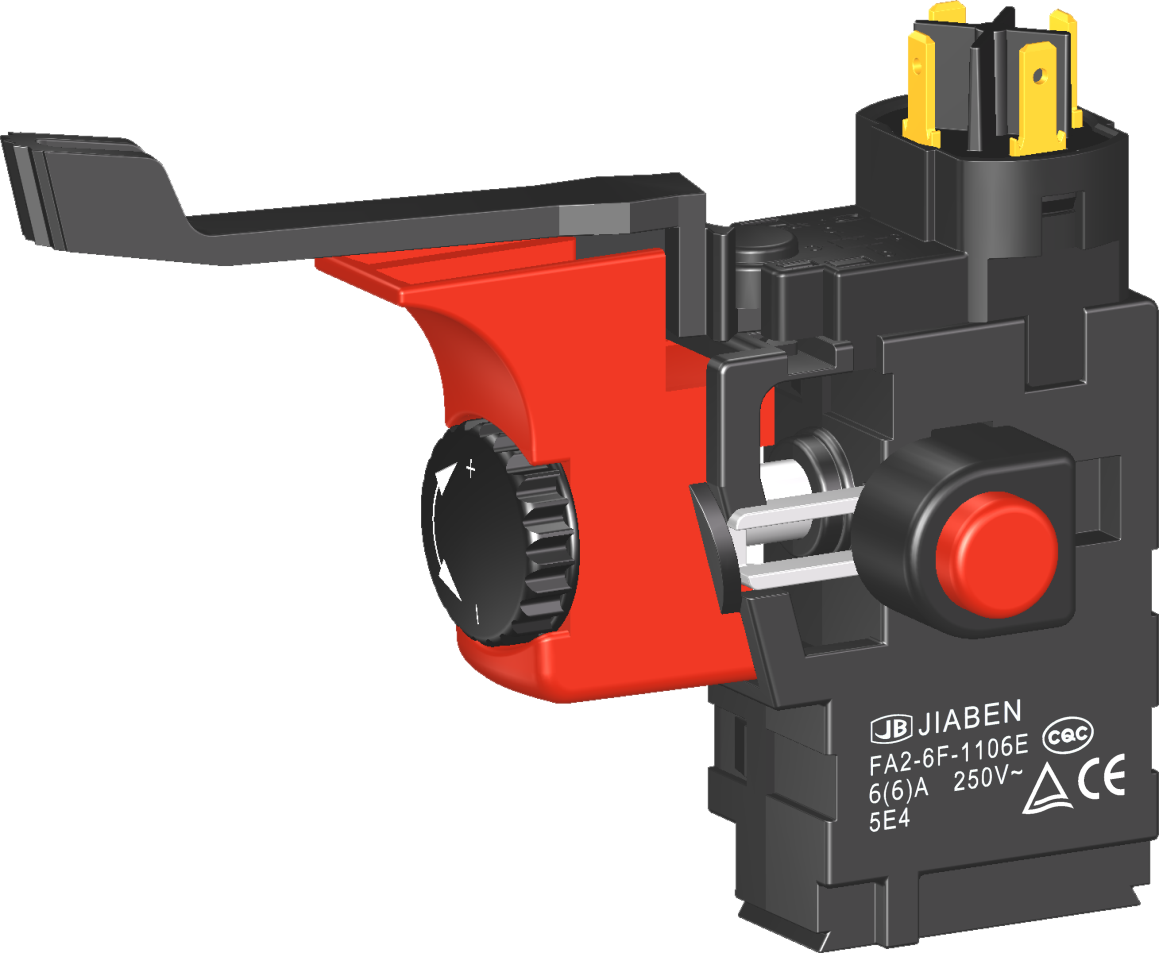

fa2-6f防尘交流扳机调速开关

fa2-6f series dustproof ac variable speed trigger switches

产品描述product description

fa2-6f系列是一款专用型扳机电子调速开关,集成防尘功能,广泛应用于各类手持式电动工具,如:电钻、冲击钻、电锤、往复锯、曲线锯、马刀锯,、搅拌器、抛光机和平板砂光机等。扳机、拨杆可根据客户要求进行定制。
fa2-6f series are one special type variable speed trigger switches, integrated dustproof, for used in portable power-tools such as: drills, impact drills, rotary hammers, reciprocating saws,jig saws, sabre saws, electric mixers, polishers, orbit sanders, etc.

产品特征features

◆可选带以下功能 optional with following function:
→全波调速 full-wave speed control
→半波调速 half-wave speed control
→on-off通断功能 on-off version
◆可选带以下锁定类型 optional with following lock types:
→无锁 no lock
→闭合锁定 lock-on

技术数据technical data

→机械耐久寿命 mechanical life endurance ≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max.inrush current at 250v48a
→最大冲击电流 max.inrush current at 125v72a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→开关内部电子部分在相应使用中一并做过相关测试,本开关适合做二类器具开关使用.
→the electronics in the switches are to be tested together with the corresponding appliance, the switches are suitable for appliance of class ii.

端子类型terminals

◆输入端 input side:
→接线柱端子 pillar terminals φ=3mm
◆输出端 output side:
→插入式端子可插入插片端子 2.8×0.8mm
push-in terminals for plug-in terminals 2.8×0.8mm
→换向盒端子 reversing box side:
→插套端子 sleeve terminals 2.8×0.8mm

电气参数和认证 electric rating and certification

订货信息ordering information
