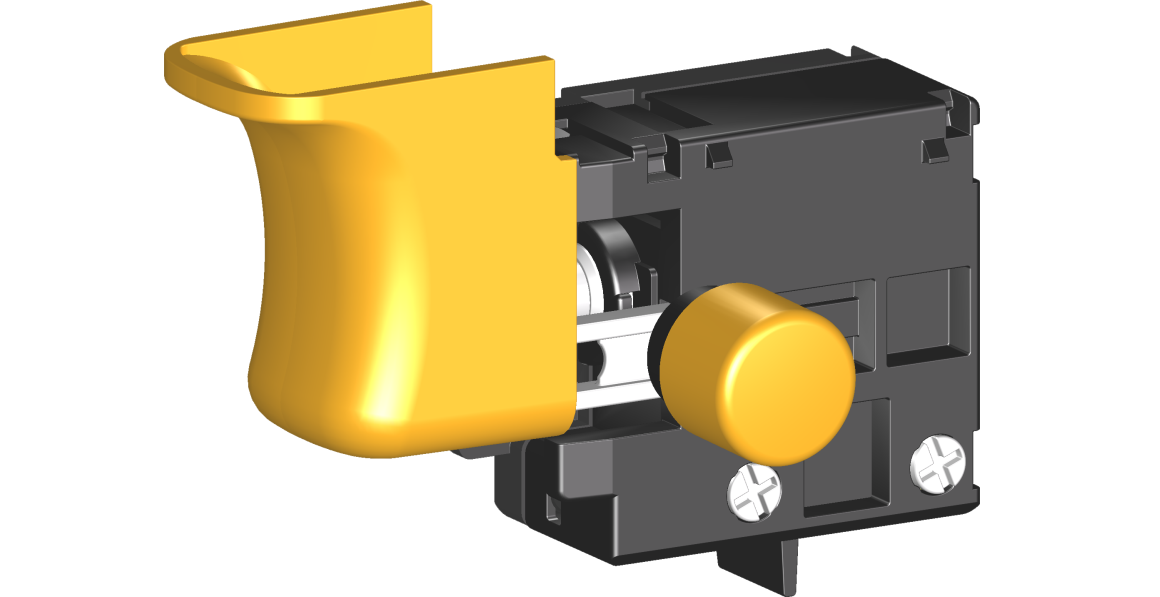

产品特征features
◆可选带以下功能optional with following function:
→全波调速 full-wave speed control
→半波调速 half- wave speed control
→通断功能 on-off version
→通断功能带电位器输出 on-off with passive linear potentiometer
→机械正转或反转限速 speed limited in forward or reverse
→内部电子正转或反转限速
electronics speed limited internal in forward or reverse
◆可选带以下锁定类型opt◆可选带以下功能 optional with following function:
→全波调速 full-wave speed control
→半波调速 half- wave speed control
→通断功能 on-off version
→通断功能带电位器输出 on-off with passive linear potentiometer
→机械正转或反转限速 speed limited in forward or reverse
→内部电子正转或反转限速
electronics speed limited internal in forward or reverse
◆可选带以下锁定类型 optional with following lock types:
→无锁 no lock
→闭合锁定(自锁) lock-on
→断开锁定(反自锁) lock-off
→断开锁定带闭合锁定(反自锁带自锁) lock-off with lock-on
◆可选带以下附件 optional with the accessories as follows:
→初始电压微调节旋钮 knob for adjusting start voltage
→扳机旋钮 dial wheel of trigger
→包软胶扳机 rubberized trigger (overmolding)
→双向可控硅或晶闸管外置用导线连接，并附加散热片
→triac or scr connected to pcb externally, optional with heat-sink
◆开关内部电子部分在相应使用中-并做过相关测试,本开关适合做二类器具开关使用.
◆the electronics in the switches are to be tested together with the corresponding appliance, the switches are suitable for appliance of class ii.ional with following lock types:
→无锁 no lock
→闭合锁定(自锁) lock-on
→断开锁定(反自锁) lock-off
→断开锁定带闭合锁定(反自锁带自锁) lock-off with lock-on
◆可选带以下附件 optional with the accessories as follows:
→初始电压微调节旋钮 knob for adjusting start voltage
→扳机旋钮 dial wheel of trigger
→包软胶扳机 rubberized trigger (overmolding)
→双向可控硅或晶闸管外置用导线连接，并附加散热片
→triac or scr connected to pcb externally, optional with heat-sink
◆开关内部电子部分在相应使用中-并做过相关测试,本开关适合做二类器具开关使用.
◆the electronics in the switches are to be tested together with the corresponding appliance, the switches are suitable for appliance of class ii.
端子类型terminals
◆输入端 input side:
→接线柱端子 pillar terminals φ=3mm
◆输出端 motor side:
→插入式端子可插入沾锡导线，带插片端子导线或铜包头导线
→push-in terminals for soldered strands, strands with end sleeves or strands with end claws
★ 本产品荣获多项实用新型专利，专利号：zl201920475248.1, zl201922023258.4
★ utility models patented with no. is zl201920475248.1, zl201922023258.4
