产品特征features
◆可选带以下功能 optional following function types:
→断电重启保护功能 restart protection(x)
→软启动功能 soft start function(s)
→过流保护功能 over current protection function(cp)
→过温保护功能 over temperature protection function(tp)
技术数据technical data
→电气耐久寿命 electrical life endurance≥5e4
→最大电流 max. current at 250v15a
→最大电流 max. current at 127v24a
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature-0°c~55°c
→阻燃等级 flammabilityul 94v-0
→适用于ii类防护器具 suitable for appliances of protection class ii

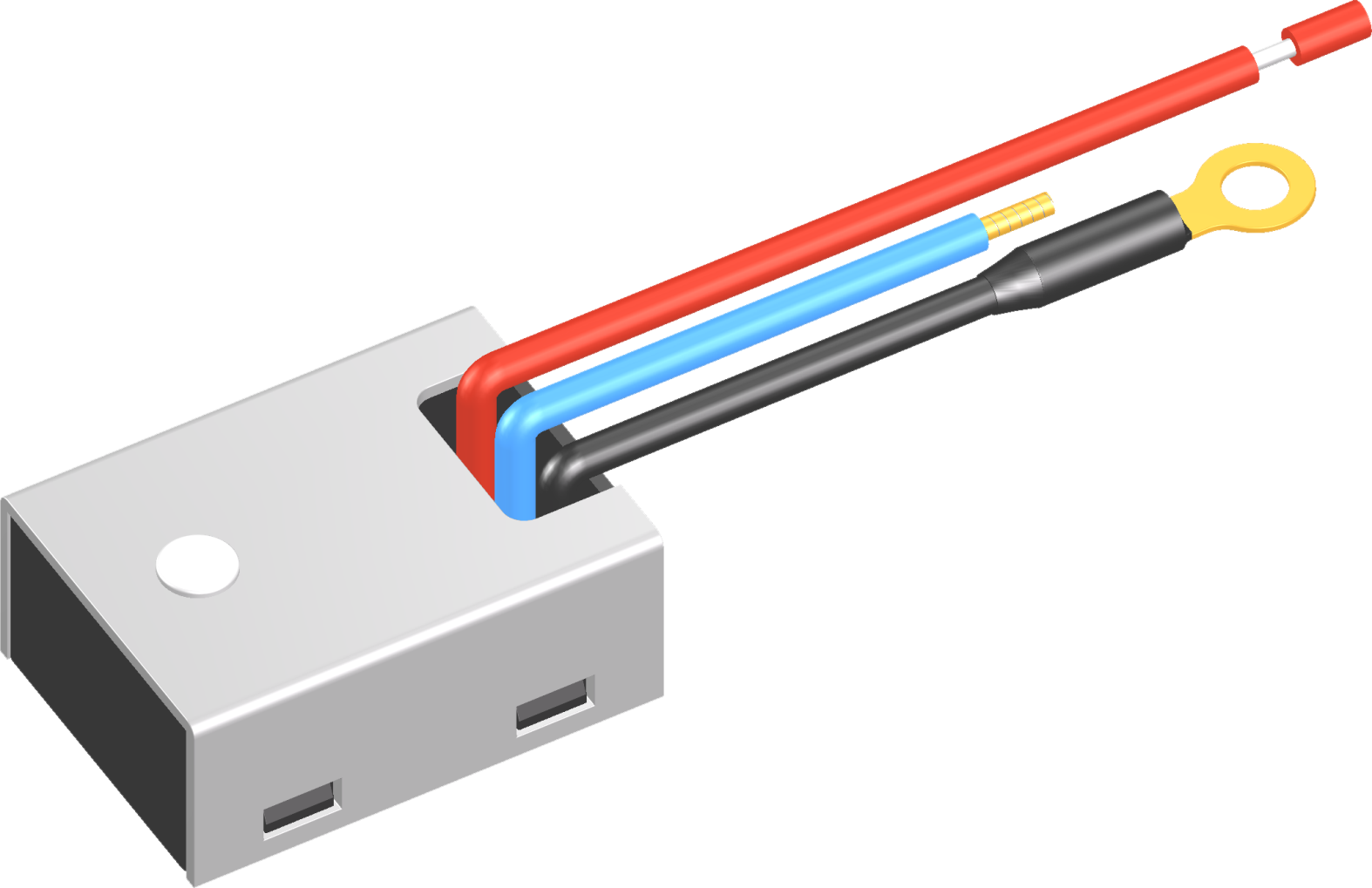

端子类型terminals
◆输入端/输出端 input side/output side:
→导线端子 wire lead terminals
