bc-z6尊龙官网入口

bc电池夹

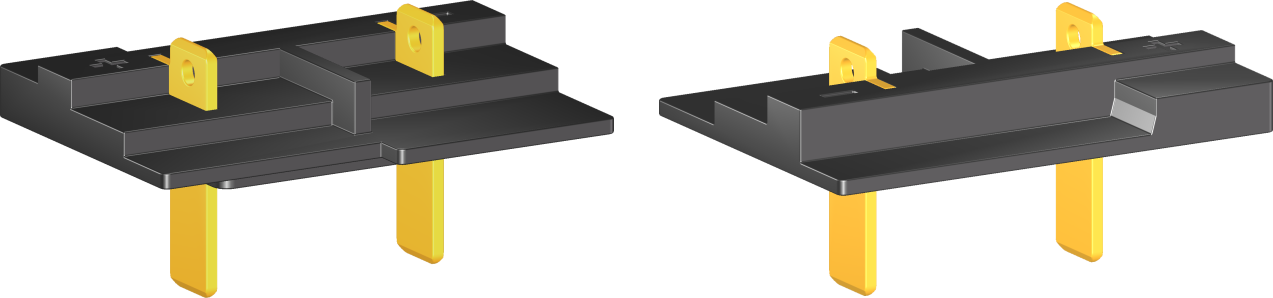

bc series battery clamp

产品描述product description

◆bc系列是专用型的直流电池夹，应用于各类直流电池式手持电动工具，如：充电式电钻、充电式螺丝起子等，可按照各类要求进行定制。
◆bc series are special type dc battery clamp, for used in dc cordless portable power-tools such as: cordless drills, cordless screw drivers, etc. we can make customized according to different request.

产品特征features

◆材料：锡青铜 material: tin-bronze
◆表面处理：镀镍 surface treatment: nickel plated

技术数据technical data

→机械耐久寿命 mechanical life endurance

≥1e4→最大电流 max. current at 42vd.c25a
→接触电阻 contact resistance≤30m ohm

→环境温度 ambient temperature0°c~55°c
→阻燃等级 flammabilityul 94v-0

端子类型terminals

◆输入端 input side:
→焊接端子 soldering terminal

产品描述

product description

产品特征

features

技术数据

technical data

端子类型

terminals

电气参数和认证

electric rating and certification
