jb09防尘防水欧式插座

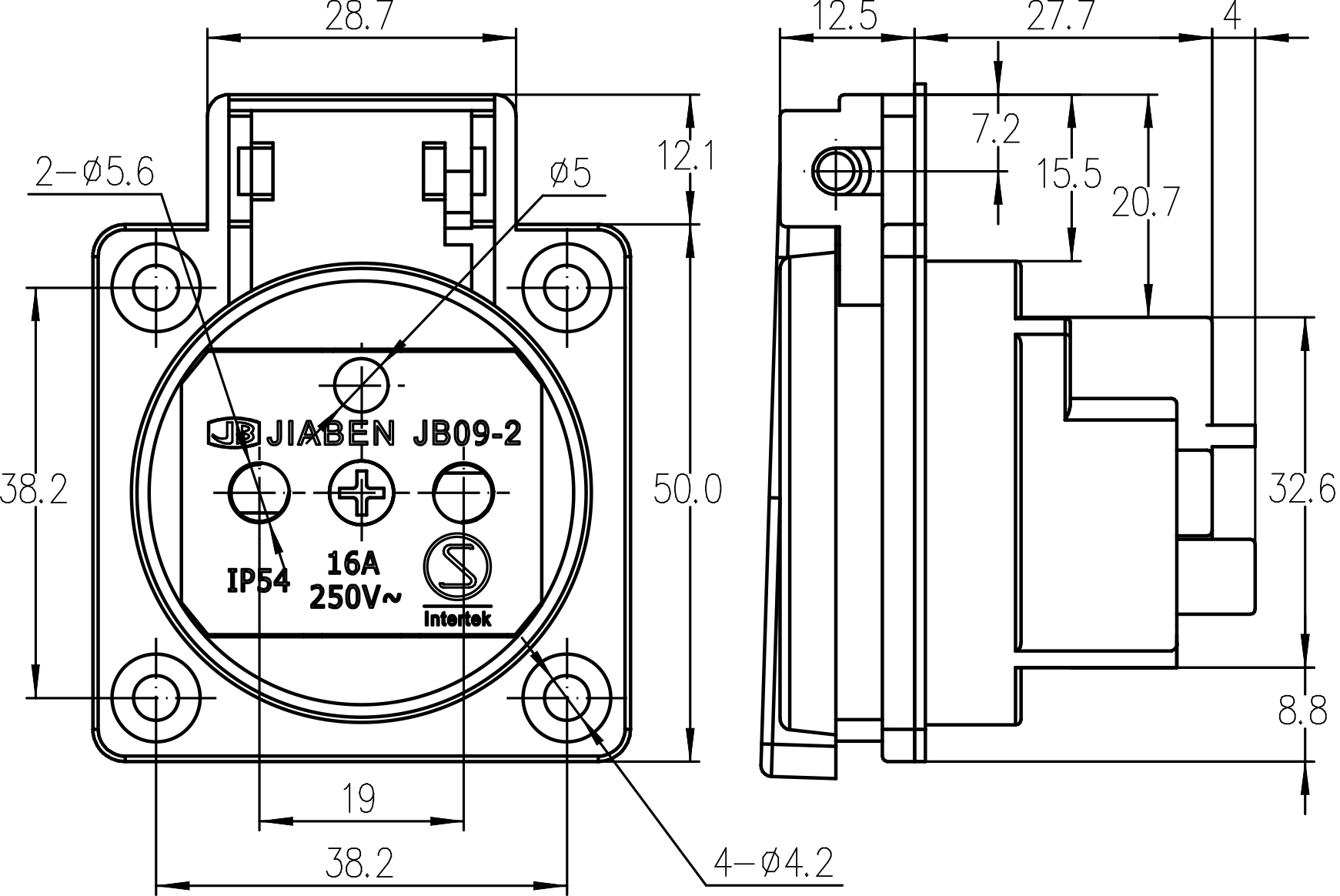

jb09 series dustproof and waterproof eurpean socket

产品描述product description

jb09-2jb09-02是一款通用型的法式插座,集成防尘防水功能,应用于干湿两用吸尘器及各类台式电动工具等。
jb09-2 or jb09-02 is one general european type socket for used in france, integrated dustproof and waterproof, for used in dry and wet vacuum cleaners or bench top power-tools, etc.

产品特征features

◆可选带以下附件 optional with the accessories as follows:
→儿童保护滑块 children protection slide block
→防水橡胶垫片 waterproof rubber gasket

技术数据technical data

→最大电流 max. current16a
→防护等级 protection typeip54

端子类型terminals

◆输入端 input side:
→l, n极:螺钉端子 l, n pole: screw terminals m3
→接地极:接线柱端子 earthing pole: pillar terminals φ=4mm

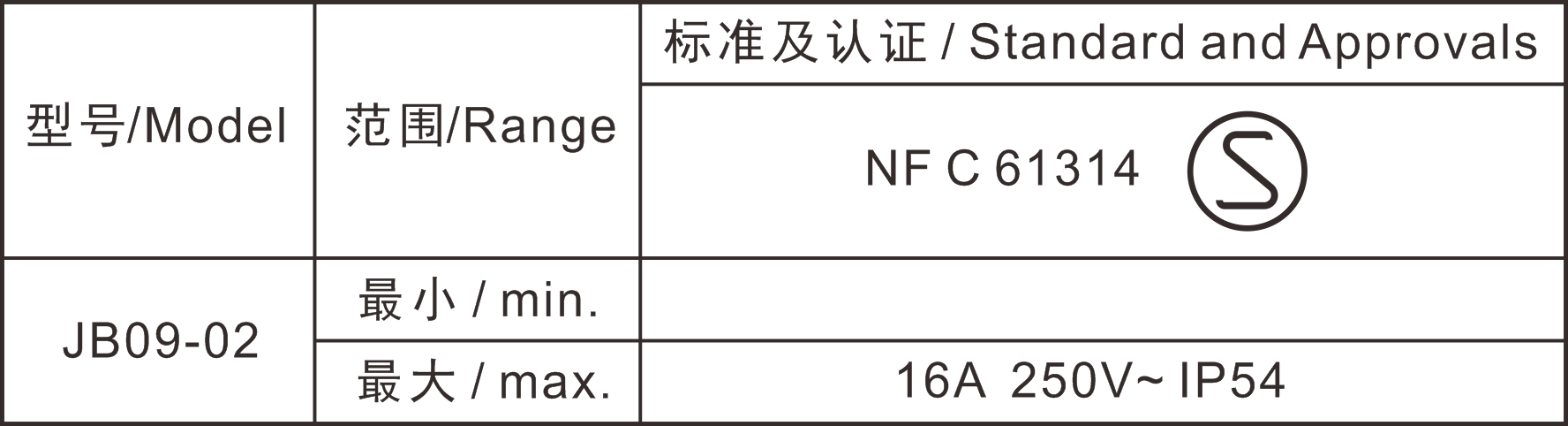

电气参数和认证 electric rating and certification
