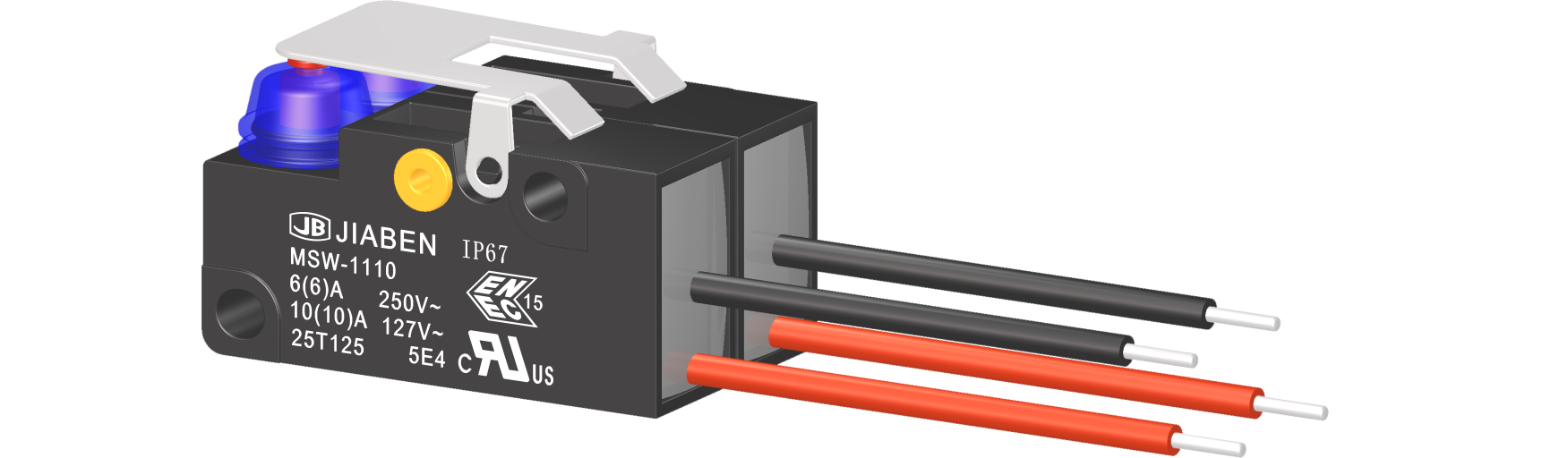

msw 防尘防水微动开关(弹片式)

msw series proof and waterproof micro switch (leaf spring type)

产品描述product description

◆msw系列是一款专用型的微动开关，装上防护罩后具有防尘防水性能，适用于各类手持电动工具和园林工具，如：砂光机、抛光机、小角磨、电动喷枪、打草机、电链锯、吹吸机等。
◆msw series are special type micro switches, with protection cap for dustproof and waterproof, commonly for used in portable power-tools and gardening tools, such as sanders, polisher grinders, electric sprayers, small angle grinders， grass trimmers, electric chain saws, blowers, etc.

产品特征features

◆可选附带以下功能 optional with the function as follows:
→单极常开 spno (single pole normally open)
→单极常闭 spnc (single pole normally close)
→单极常闭常开 spco (single pole close and open)
→双极常开 dpno (double pole normally open)
→双极常闭 spnc (double pole normally close)
→双极常闭常开 spco (double pole close and open)
→一极常开，另一极常闭one pole no, the other nc
→一极常开，另一极常闭常开one pole no, the other co
◆可选附带以下附件 optional with the accessories as follows:
→压柄 push handle
→防护罩 protection cap

→焊接带端子导线 soldering with leads and terminals

技术数据technical data

→机械耐久寿命 mechanical life endurance≥5e4/1e5
→电气耐久寿命 electrical life endurance≥1e4/ 5e4
→最大冲击电流 max. inrush current at 250v60a
→最大冲击电流 max. inrush current at 127v96a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature (enec/ul)-20°c~125°c
→环境温度 ambient temperature (tüv/cqc)0°c~85°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip67 max.
→适用于ii类防护器具 suitable for appliances of protection class ii
→开关操作力选择范围 operating forcer ange3n~15n
→开关内部触点间隙 contact gap range1.0~2.5mm

端子类型terminals

◆com, no, nc端子 terminals:
→插片端子 plug-in terminals 4.8×0.8mm
→插片端子 plug-in terminals 4.8×0.5mm
→焊接端子 solder terminals
→外接导线端子 wires terminals
★本产品荣获实用新型专利，专利号：zl201821286857.4
★utility model patented with the no. is zl201821286857.4
