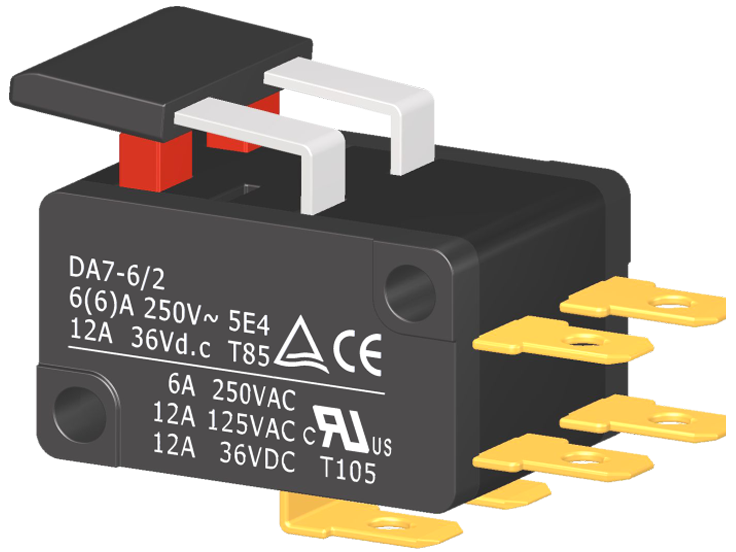

msa微动开关(弹片式)

msa series micro switch (leaf spring type)

产品描述product description

msa(da7-6/1, da7-6/2)系列是一款标准型的微动开关,用途极广,适用于各类小功率交流和直流电动工具和园林工具,如:电动钉枪、电动喷枪、打草机、修枝机(也叫绿篱机、篱笆剪)等。
msa(da7-6/1, da7-6/2) series are one standard type micro switches, commonly for use in low rated ac and dc powe r-tools or gardening tools, such as electric tackers, electric s prayers, grass trimmers, hedge trimmers, etc.

产品特征features

◆可选带以下功能 optional with the function as follows:
→单极常开 spno (single pole normally open)
→单极常闭常开 spco (single pole close and open)
→单极常闭 spnc (single pole normally close)
→双极常开 dpno (double pole normally open)
→双极常闭常开  dpco (double pole close and open)
→双极常闭 dpnc (double pole normally close)
◆可选附带以下附件 optional with the accessories as follows:
→压柄 push handle

技术数据technical data

→机械耐久寿命 mechanical life endurance≥1e5
→电气耐久寿命 electrical life endurance≥5e4
→最大冲击电流 max. inrush current36a
→接触电阻 contact resistance≤30m ohm
→绝缘电阻 insulation resistance≥7m ohm
→基本介电强度 dielectric strength of function1500v
→加强介电强度 dielectric strength of reinforced3000v
→环境温度 ambient temperature0°c~85°c
→阻燃等级 flammabilityul 94v-0
→防护等级 protection typeip40
→适用于ii类防护器具 suitable for appliances of protection class ii

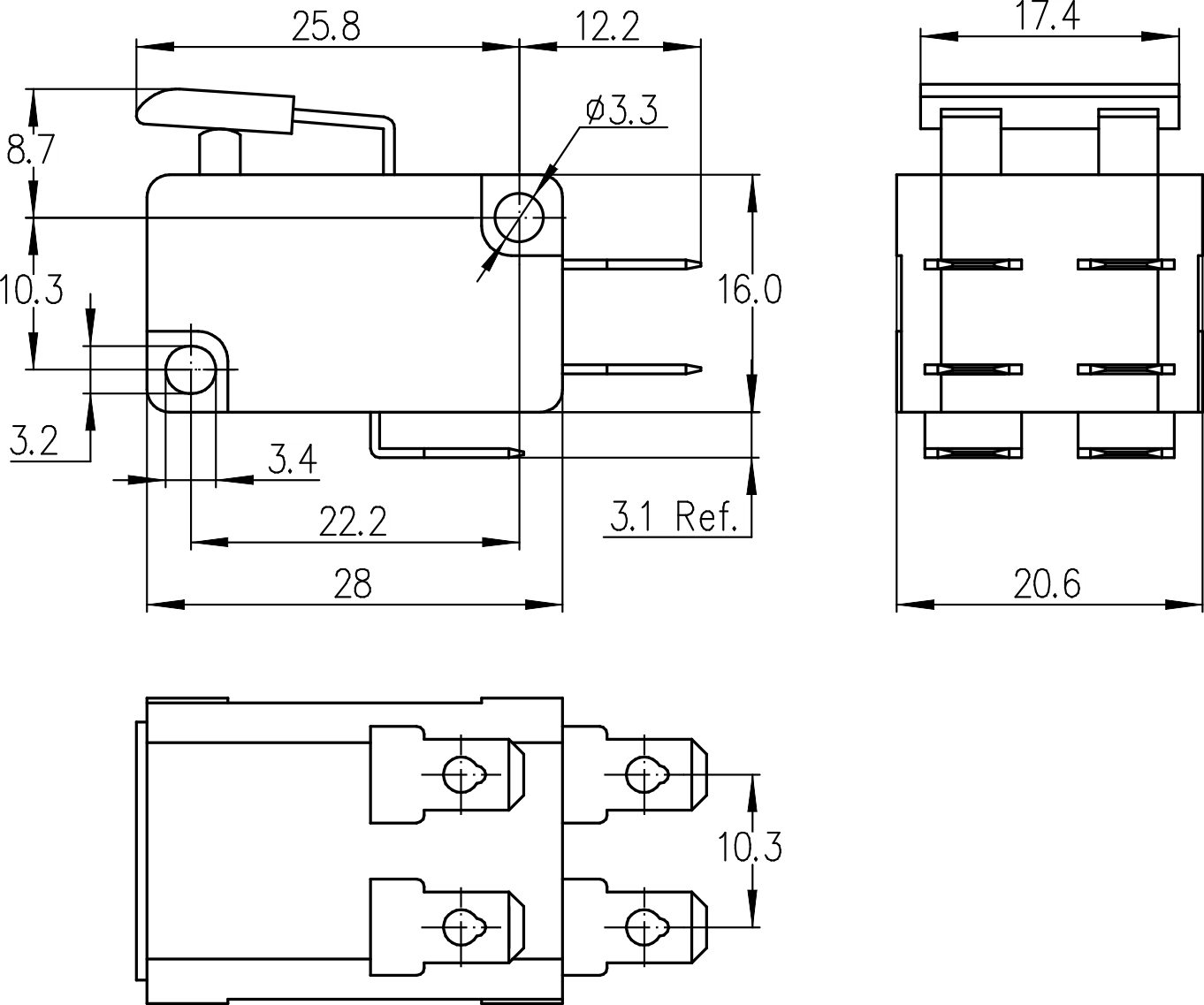

端子类型terminals

◆com, no, nc端子 terminals:
→插片端子 plug-in terminals 4.8×0.6mm
→焊接端子 solder terminals

电气参数和认证 electric rating and certification

订货信息ordering information
